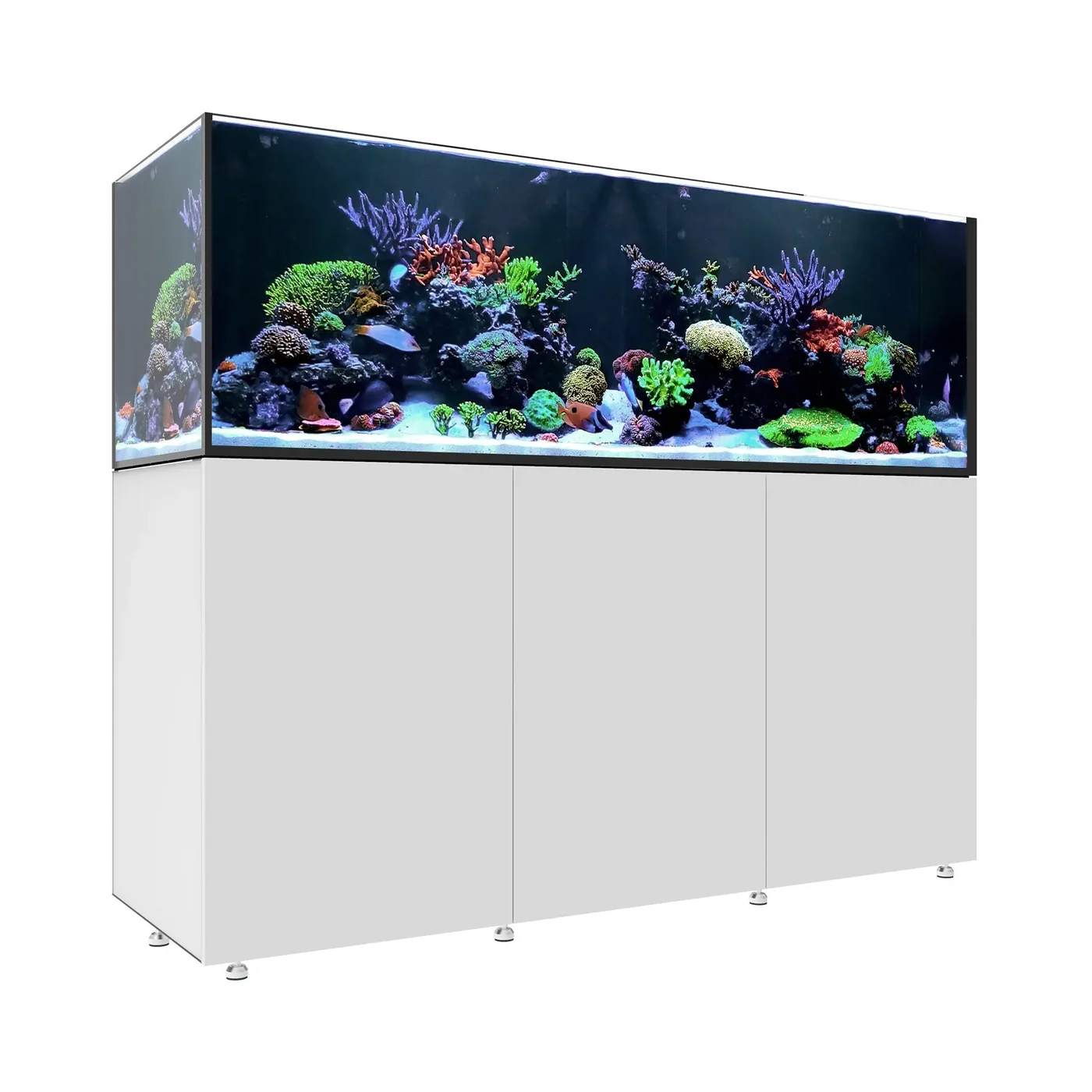

Waterbox INFINIA REEF 230.6 – Premium 6ft Reef Aquarium System
The Waterbox INFINIA REEF 230.6 is the largest aquarium in the INFINIA REEF range, designed for serious reef keepers looking for a substantial 6-foot display with plenty of room for both large coral colonies and an active fish population.
The REEF series is Waterbox's all-round INFINIA format, offering greater display height than the FRAG models while retaining the generous front-to-back depth required for impressive aquascaping.
Specifications:
Display dimensions: 72.3 × 25.3 × 23.6" / approximately 1836 × 643 × 599 mm
Display volume: 167 US gallons / approx. 632 litres
Total system volume: 231.2 US gallons / approx. 875 litres
Glass thickness: 19 mm
Height including cabinet: 60.1" / approx. 1527 mm
Cabinet colours: Black or White
Key Features:
Ultra-clear rimless glass construction
Massive 1836 × 643 mm aquascaping footprint
Increased display height provides excellent swimming room for larger reef fish
Ideal for large mixed reefs, SPS systems and mature coral displays
Centralised glass overflow
Dual adjustable return system
Stabilising mat helps distribute the aquarium's weight evenly

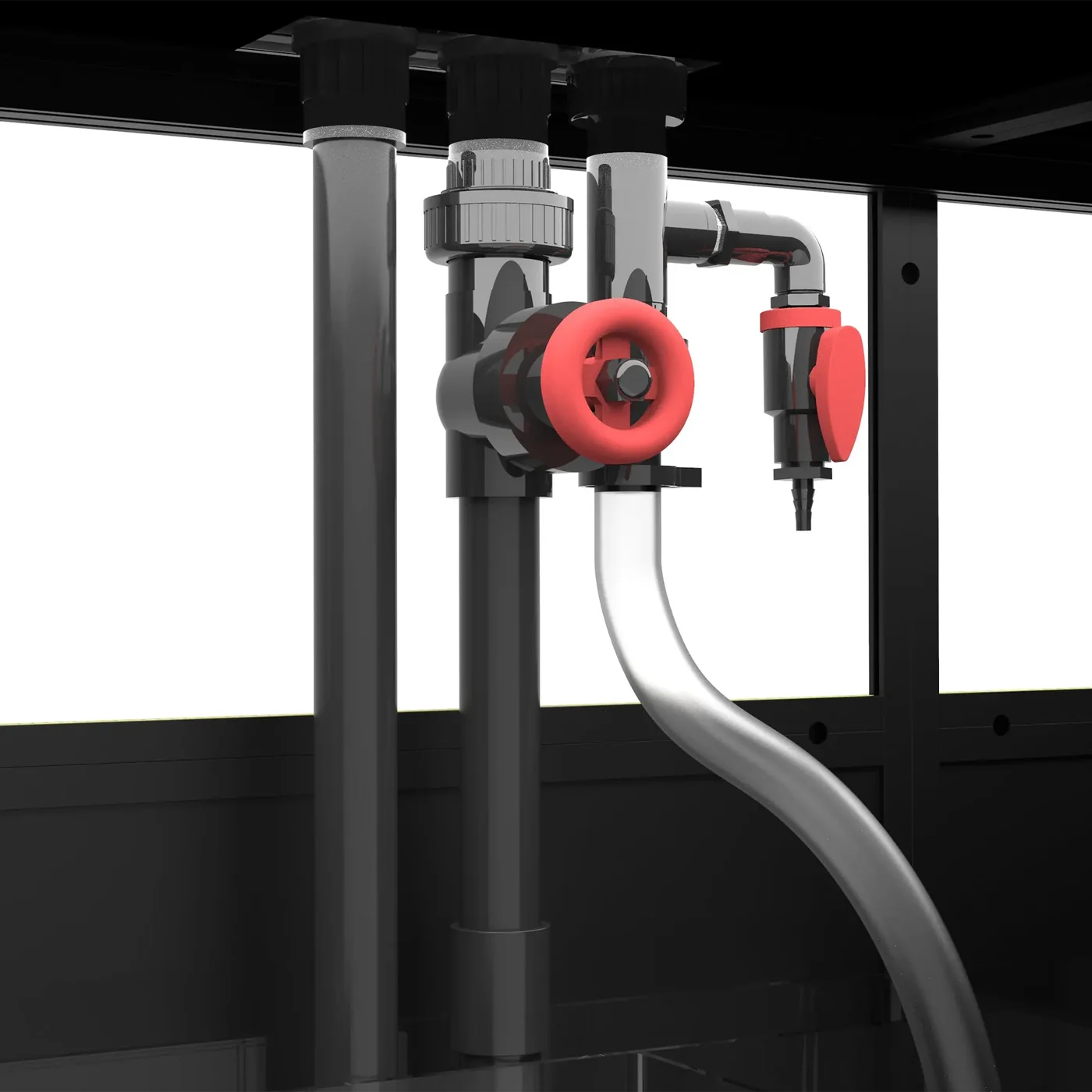

Pre-engineered Quick Connect plumbing for straightforward, tool-free assembly
Precision gate valve allows the main drain to be adjusted for quiet and stable operation
Integrated return-line check valve helps prevent backflow during pump shutdown or power failure
Dedicated single-manifold system for connecting additional equipment such as UV sterilisers, media reactors and filters

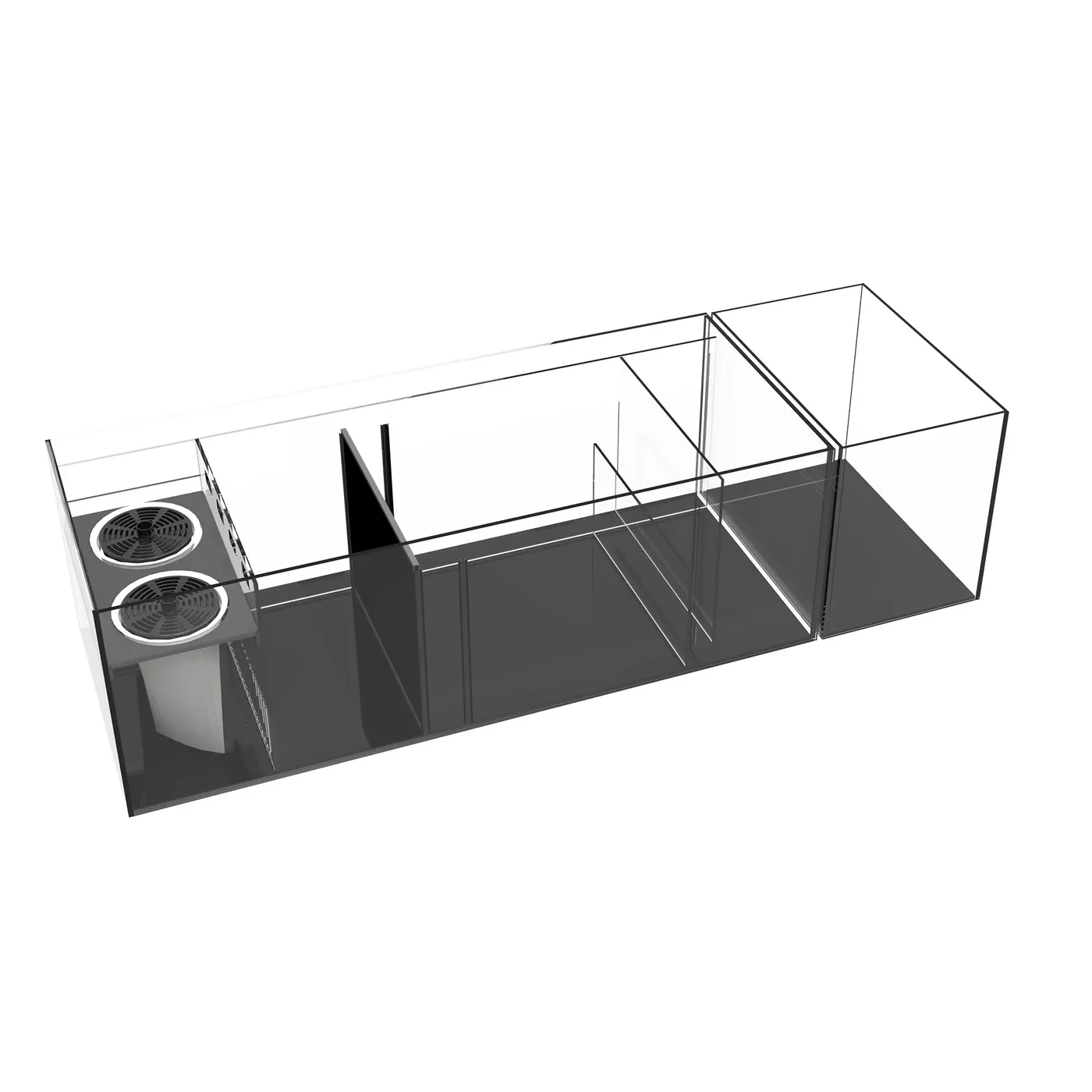

Premium Sump System:
Dual removable felt filter socks for mechanical filtration
Removable filter sock tray allows straightforward conversion to a filter roller
Large main equipment chamber suitable for protein skimmers and media reactors
Dedicated removable refugium chamber
External freshwater RO/DI reservoir for use with an automatic top-off system
MARINESHIELD Cabinet:
The INFINIA REEF 230.6 uses Waterbox's premium MARINESHIELD aluminium-frame cabinet. The rigid aluminium structure provides excellent strength and resistance to warping, while moisture-resistant PET-laminated panels and doors provide a clean modern finish.
Available in Black or White.
What's Included:
INFINIA REEF 230.6 aquarium
MARINESHIELD aluminium-frame cabinet
Premium sump filtration system
Quick Connect plumbing
Precision overflow gate valve
Integrated return check valve
Equipment manifold
Dual filter socks with removable tray
Removable refugium chamber
External RO/DI reservoir
Stabilising mat
The custom-fit mesh lid is optional on the INFINIA REEF range and is not included as standard.
Lighting, return pump, protein skimmer, heater and circulation pumps can be selected separately according to the intended reef setup.
The INFINIA REEF 230.6 is the flagship choice for customers wanting a substantial 6-foot reef aquarium. At approximately 632 litres in the display and 875 litres total system volume, it provides significantly more capacity for larger fish such as tangs, wrasses and anthias while offering enough space for extensive SPS or mixed-reef aquascaping.
Waterbox provides a 3-year warranty against defects in materials and workmanship.
