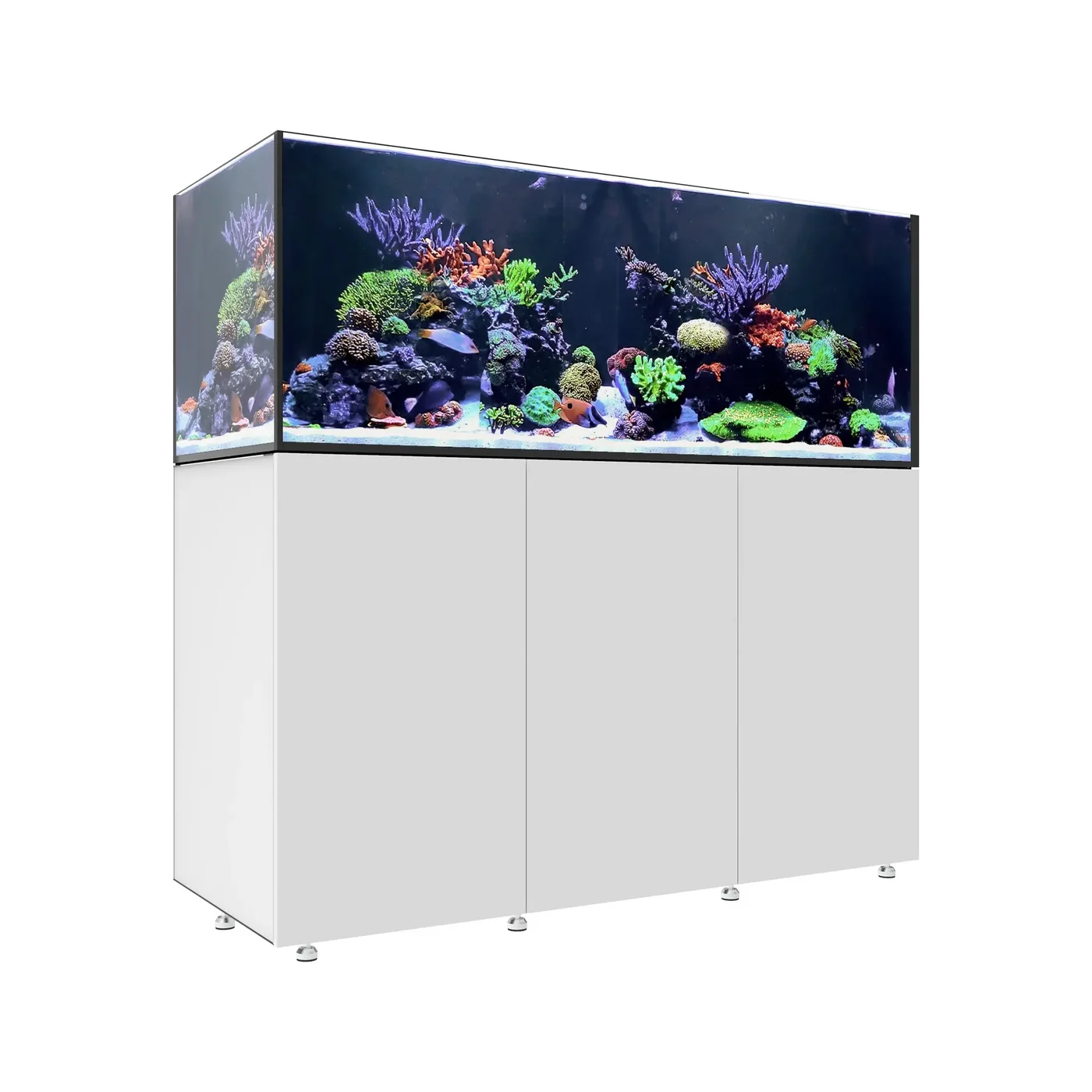

Waterbox INFINIA REEF 190.5 – Premium 5ft Reef Aquarium System + furniture
The Waterbox INFINIA REEF 190.5 is a large premium reef system designed for aquarists wanting significantly more swimming and aquascaping space while retaining manageable 5-foot dimensions.
With a 153.6 × 64.3 × 57.5 cm display, the REEF 190.5 provides excellent front-to-back depth for substantial rock structures and mature coral colonies, while the increased height gives larger reef fish considerably more swimming room. Waterbox positions the INFINIA REEF range as its balanced option for customers wanting both a thriving fish community and a substantial coral reef.
Specifications:
Display dimensions: 1536 × 643 × 575 mm / 60.5 × 25.3 × 22.6"
Display volume: 517 litres / 136.6 US gallons
Total system volume with ATO: 730 litres / 192.8 US gallons
Sump dimensions: 965 × 475 × 380 mm
Sump volume: 162 litres / 42.8 US gallons
Glass thickness: 15 mm
Glass: Ultra-clear low-iron glass – front and sides
Light transmission: 91%
Height including cabinet: 1502 mm / 59.1"
Total system weight empty: 259 kg / 571 lb
Key Features:
Ultra-clear rimless glass construction
Large 1536 × 643 mm aquascaping footprint
575 mm display height providing excellent swimming space for larger reef fish
Centralised glass overflow with dual adjustable returns
Stabilising mat to distribute the aquarium's weight
Pre-engineered Quick Connect plumbing for fast, secure installation

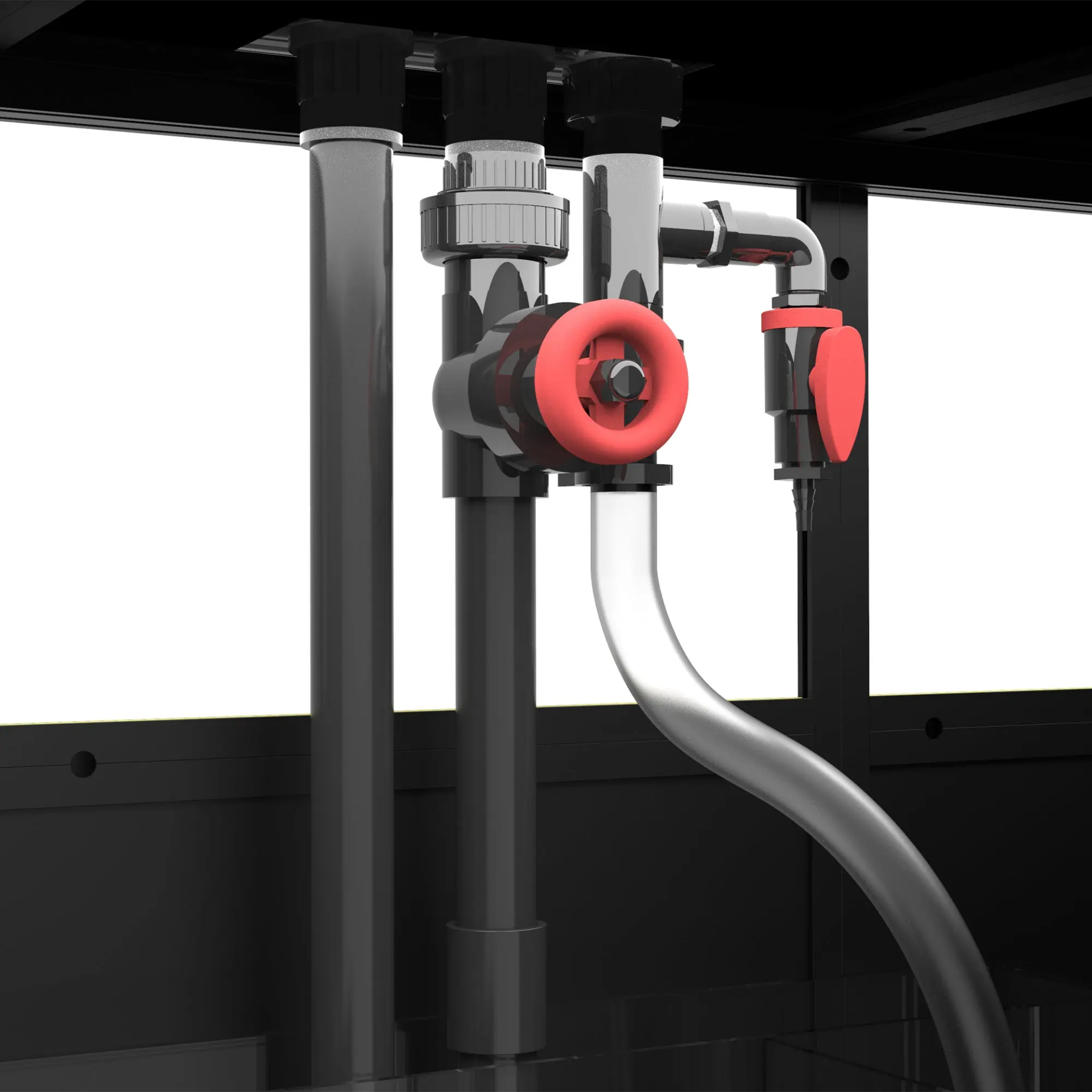

Precision gate valve for quiet and stable overflow adjustment
Integrated return-line check valve to help prevent backflow during pump shutdown or power failure
Dedicated single-manifold system for connecting equipment such as UV sterilisers, media reactors and additional filtration

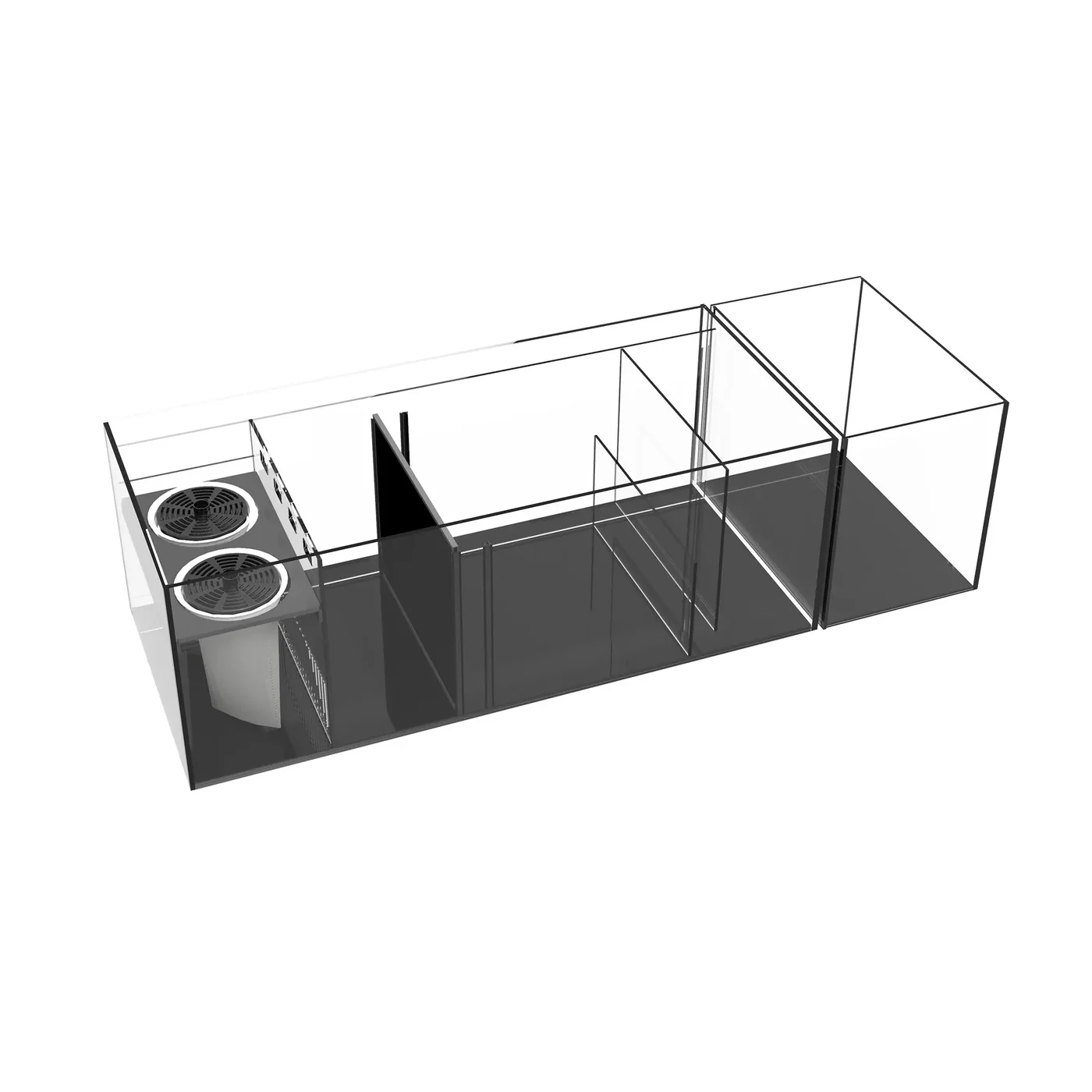

Premium Sump System:
Dual removable felt filter socks for mechanical filtration
Removable filter sock tray allowing straightforward conversion to a filter roller
Large main chamber suitable for protein skimmers and media reactors
Dedicated removable refugium chamber
External RO/DI freshwater reservoir for use with an automatic top-off system

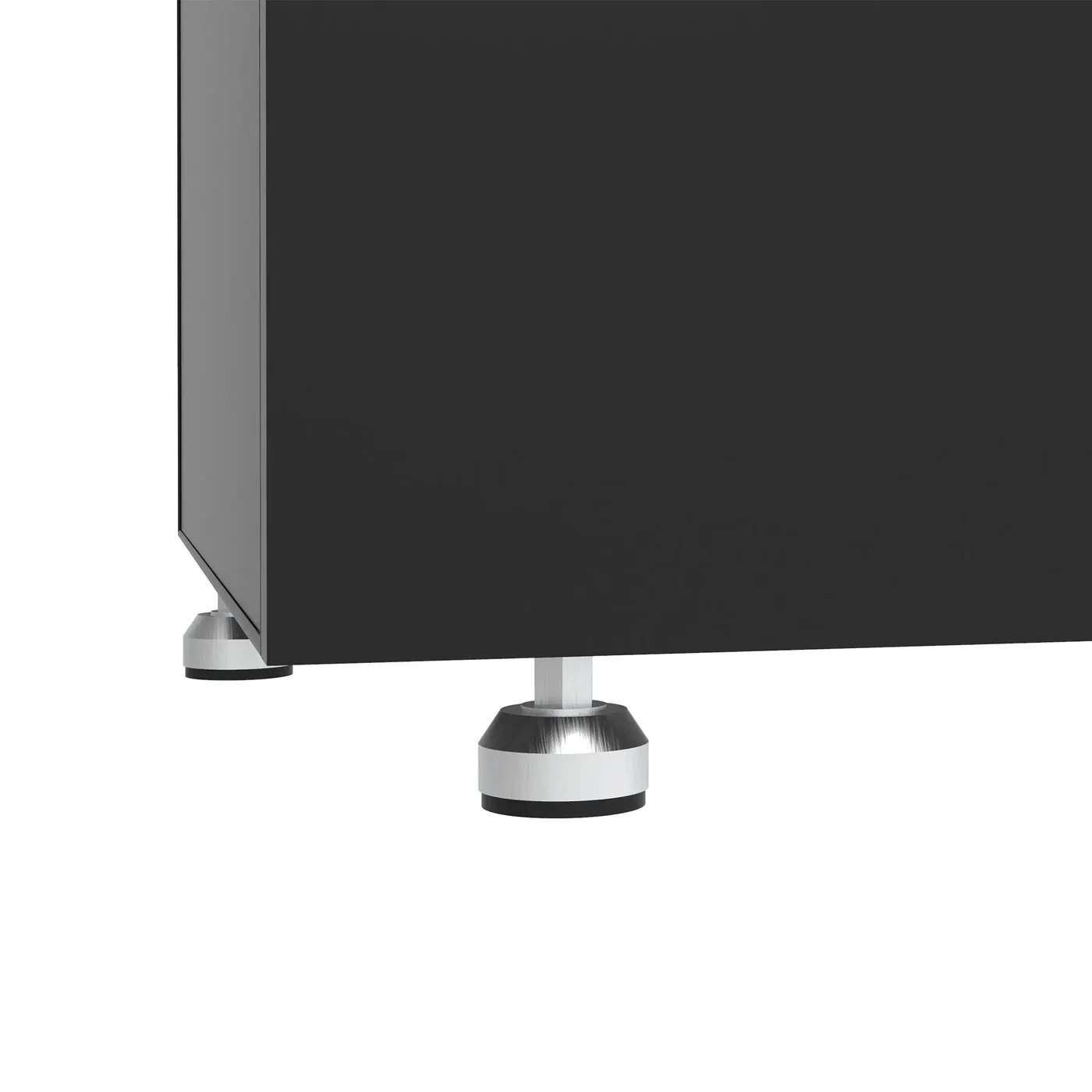

MARINESHIELD Cabinet:
The INFINIA REEF 190.5 uses Waterbox's MARINESHIELD aluminium-frame cabinet, providing a rigid structural foundation that is resistant to warping and well suited to the humid environment around a large marine aquarium.
The aluminium framework is finished with moisture-resistant PET-laminated panels and doors.
Available cabinet colours: Black or White.
What's Included:
INFINIA REEF 190.5 aquarium
MARINESHIELD aluminium-frame cabinet
Premium sump filtration system
Quick Connect plumbing
Precision overflow gate valve
Integrated return check valve
Equipment manifold
Dual filter socks with removable tray
Removable refugium chamber
External RO/DI reservoir
Stabilising mat
The custom-fit mesh lid is optional on the INFINIA REEF range rather than included as standard.
Lighting, return pump, protein skimmer, heater and circulation pumps can be selected separately according to the intended reef setup.
The INFINIA REEF 190.5 is an excellent option for customers wanting a serious 5-foot mixed reef or SPS system. Its 64 cm front-to-back depth provides considerably more aquascaping potential than a conventional narrow 5-foot aquarium, while the 57.5 cm height gives plenty of room for fish such as tangs, anthias and wrasses alongside large coral colonies.
Waterbox provides a 3-year warranty against defects in materials and workmanship.
