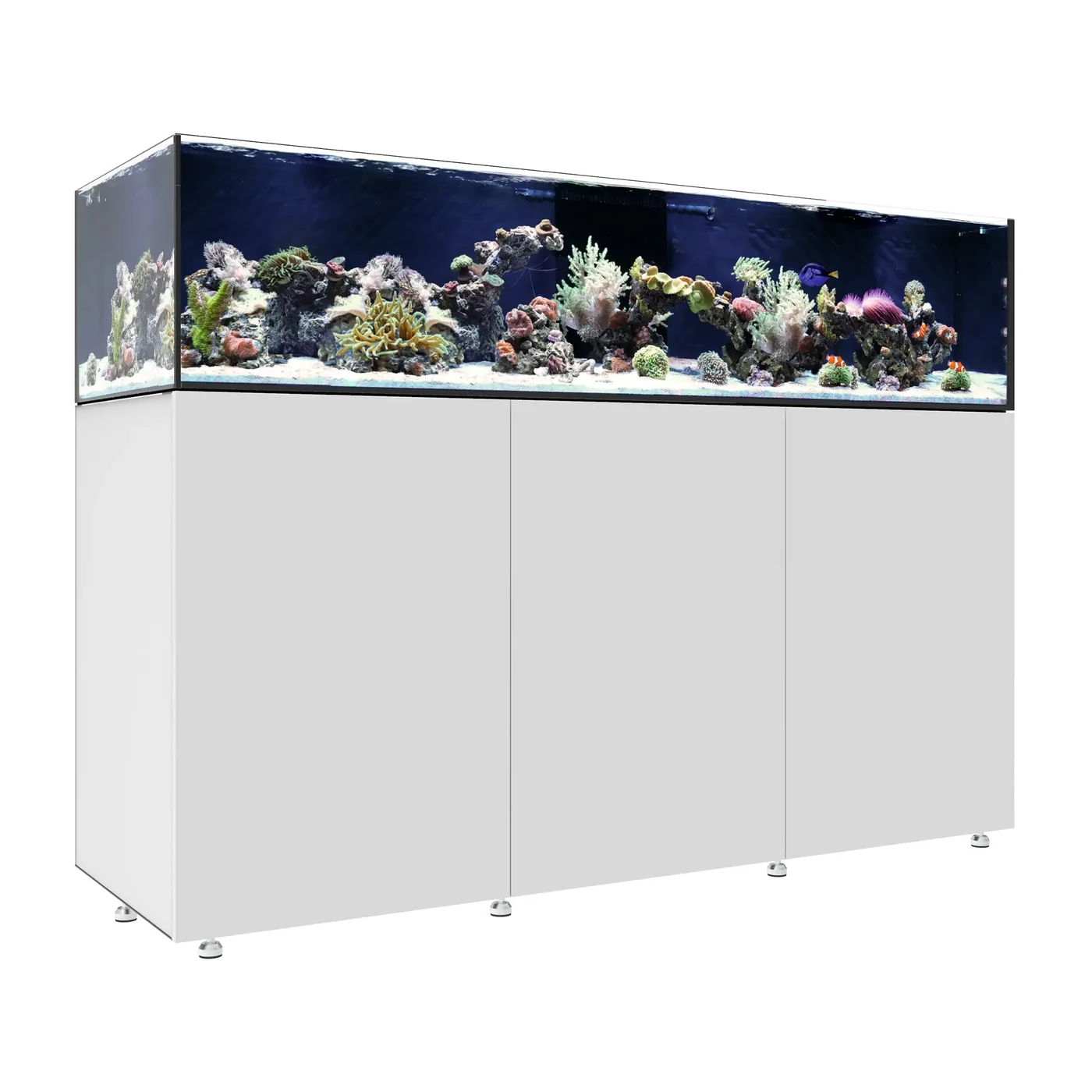

Waterbox INFINIA FRAG 175.6 – Premium 6ft Shallow Reef & Coral Aquarium System + furniture
The Waterbox INFINIA FRAG 175.6 is the largest model in the current INFINIA FRAG range, providing a huge 1.84 × 0.64 m coral display footprint while retaining the shallow 410 mm height that defines the FRAG series.
Designed with coral enthusiasts in mind, the shallow format provides excellent accessibility for coral placement and maintenance, efficient light penetration and an expansive area for creating large SPS, LPS or mixed coral gardens.
Specifications:
Display dimensions: 1836 × 643 × 410 mm / 72.3 × 25.3 × 16.1"
Display volume: 446 litres / 117.9 US gallons
Total system volume with ATO: 690 litres / 182.2 US gallons
Sump dimensions: 1143 × 475 × 380 mm
Sump volume: 192 litres / 50.8 US gallons
Glass thickness: 12 mm
Glass: Ultra-clear low-iron glass – front and sides
Light transmission: 91%
Height including cabinet: 1337 mm / 52.6"
Total system weight (empty): 232 kg / 511 lb
Why the FRAG Design?
The INFINIA FRAG prioritises usable surface area rather than aquarium height. At only 410 mm tall, reaching the bottom of the aquarium for coral placement, fragging, cleaning and maintenance is considerably easier than with a conventional deep reef aquarium.
The shallow design also allows reef lighting to reach corals efficiently, while the generous 643 mm front-to-back depth provides plenty of room for open aquascaping and large mature coral colonies.
Key Features:
Ultra-clear rimless glass construction
Massive 1836 × 643 mm aquascaping footprint
Shallow 410 mm display specifically suited to coral-focused systems
Centralised glass overflow with dual adjustable returns
Stabilising aquarium mat

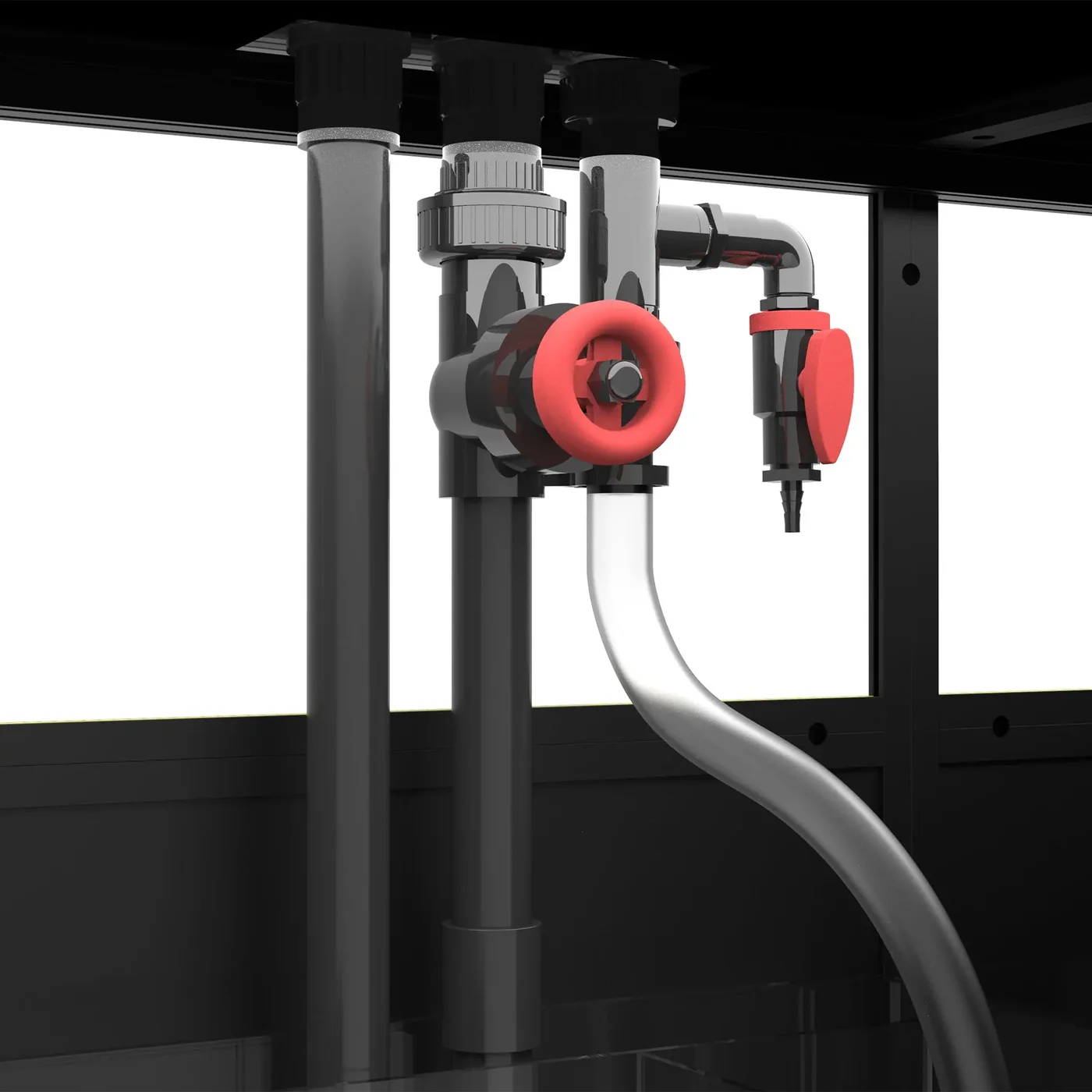

Pre-engineered Quick Connect plumbing
Precision gate valve for quiet and stable overflow operation
Integrated return-line check valve to help prevent backflow during pump shutdown or power failure
Dedicated single-manifold system for connecting additional equipment such as UV sterilisers, reactors or media filters

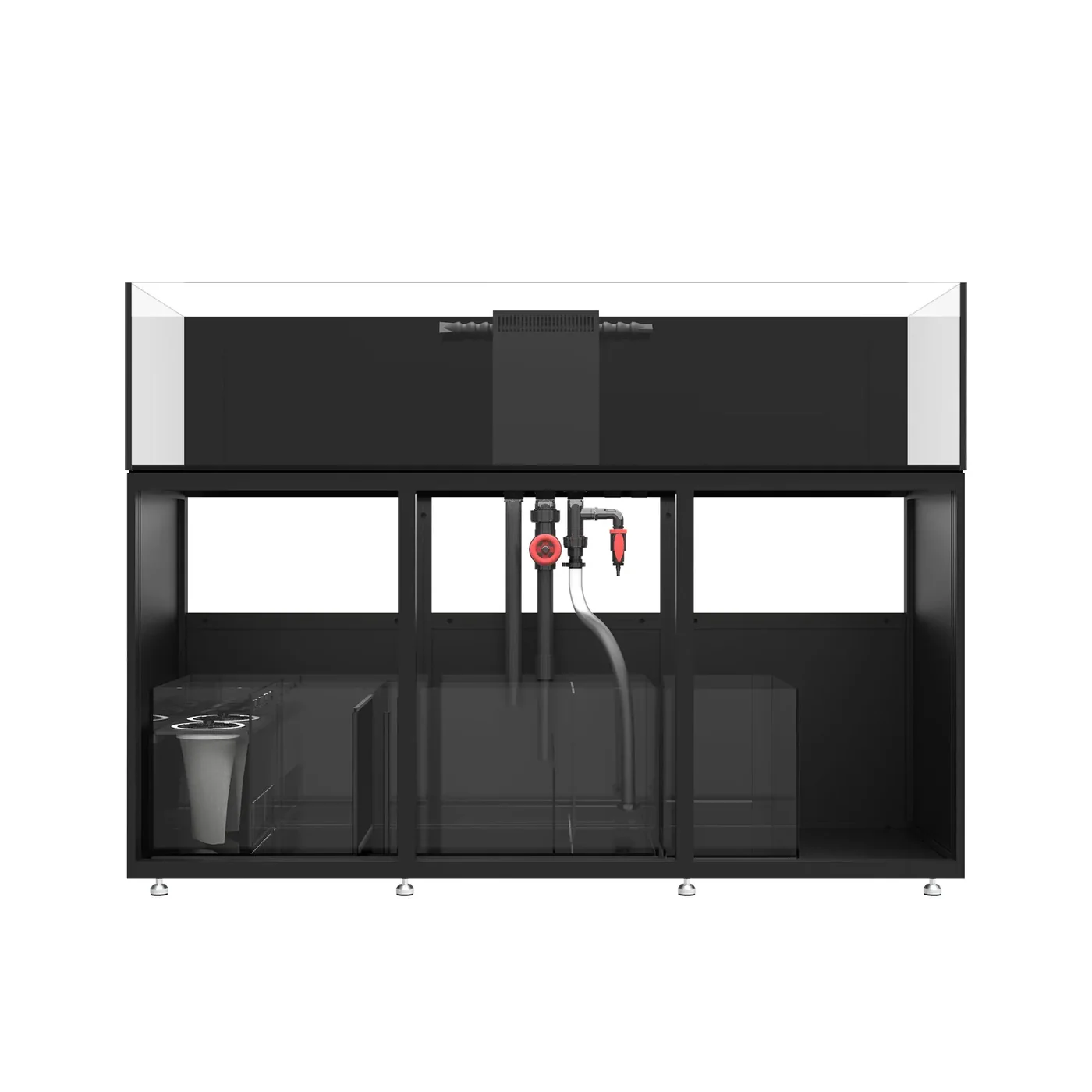

Premium Sump System:
Dual removable felt filter socks
Removable filter sock tray allows straightforward conversion to a filter roller
Large main equipment chamber suitable for protein skimmers and media reactors
Dedicated removable refugium chamber
External RO/DI freshwater reservoir for use with an automatic top-off system

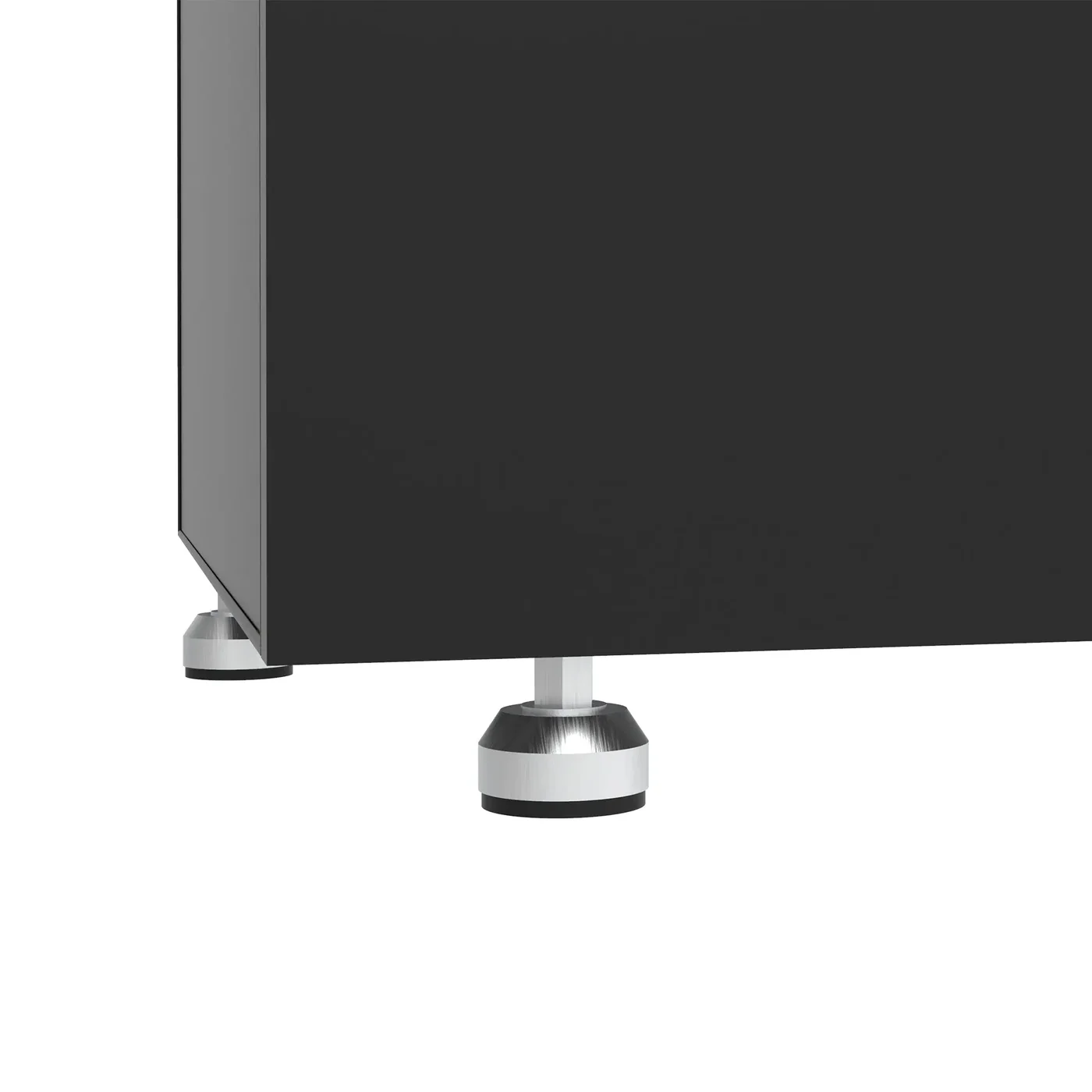

MARINESHIELD Cabinet:
The INFINIA FRAG 175.6 uses Waterbox's premium MARINESHIELD aluminium-frame cabinet. The rigid aluminium framework provides excellent structural strength while resisting warping and the demanding humid environment associated with large marine aquariums.
Moisture-resistant PET-laminated panels and doors provide the external finish.
Available cabinet colours: Black or White.
What's Included:
INFINIA FRAG 175.6 aquarium
MARINESHIELD aluminium-frame cabinet
Premium sump filtration system
Quick Connect plumbing
Precision overflow gate valve
Integrated return check valve
Equipment manifold
Dual filter socks with removable tray
Removable refugium chamber
External RO/DI reservoir
Stabilising mat
The custom-fit mesh lid is optional on the INFINIA FRAG range rather than included as standard.
Lighting, return pump, protein skimmer, heater and circulation pumps can be selected separately according to the intended reef setup.
The INFINIA FRAG 175.6 is particularly suited to a large SPS reef, LPS coral garden, mixed reef or professional coral display. Its 6-foot length combined with 64 cm depth provides an exceptional amount of coral-growing area, while the shallow 41 cm height keeps even a system of this size easy to access and maintain.
Waterbox provides a 3-year warranty against defects in materials and workmanship.
